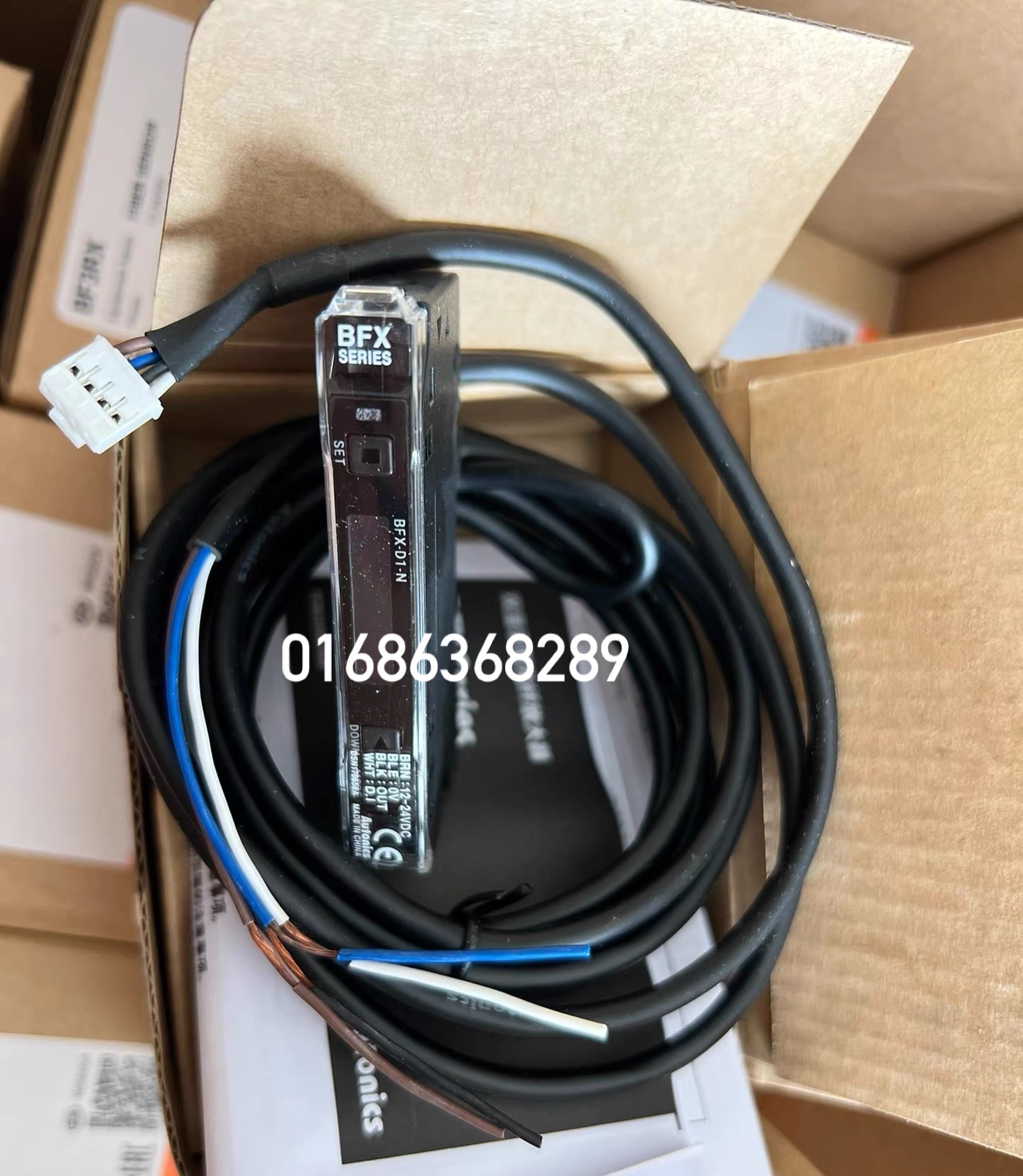

Autonics BFX-D1-N Digital Fiber Optic Amplifiers

The Autonics BFX-D1-N is a high-speed, dual-display digital fiber optic amplifier engineered for high-precision sensing applications. It mounts onto standard 35 mm DIN rails and pairs with Autonics plastic fiber optic cables (FT/FD series) to detect tiny components, marks, or edges in tight industrial environments.



Model Code Breakdown

• BFX: BFX Series LCD Display Digital Fiber Optic Amplifier

• D: Dual Display (Present Value in Red / Set Value in Green)

• 1: Standard Body Type with M8 Connector Cable Cable Assembly

• N: NPN Open Collector Control Output

  (For PNP output, the corresponding model is BFX-D1-P).

Technical Specifications

Parameter	Specification
Light Source	Red LED (660 nm wavelength)
Display Type	4-digit, 7-segment dual LCD display
Sensing Resolution	High resolution up to 1/10,000
Operating Voltage	12–24 V DC (±10%)
Control Output	NPN open collector (Max. 30 V DC, 100 mA)
Operation Modes	Light-ON / Dark-ON (parameter selectable)
Response Speeds	5 selectable speeds: Ultra Fast (50 µs), Fast (150 µs), Standard (500 µs), Long (4 ms), Ultra Long (10 ms)
Teaching Modes	Auto-tuning, 1-Point, 2-Point, and Positioning Teaching
Timer Functions	OFF, OFF Delay, ON Delay, One-shot (1 to 5000 ms adjustable)
Dimensions	Slim profile: W 10 mm x H 30.6 mm x L 70.5 mm
Enclosure Rating	IP40

Key Features & Operating Benefits

• High-Contrast LCD Dual Display: Displays the current light intensity (PV) and the active threshold limit (SV) simultaneously for clear visibility.

• Ultra-Fast 50 µs Speed Mode: Capable of detecting rapidly moving targets on high-speed conveyor lines or indexing stations.

• Anti-Saturation Function: Automatically dampens light emission intensity when targets are very close to prevent signal overflow/saturation.

• External Input Terminal: Supports remote teaching, emitter OFF control, peak reset, and power-saving modes via external control lines.

Typical Applications

• High-Speed Packaging: Print registration mark detection and clear bottle/cap presence verification.

• Semiconductor & Electronics: Pin alignment, IC chip positioning, and PCB edge detection inside robotic pick-and-place machines.

• Pharmaceutical Machinery: Blister pack inspection, tablet counting, and liquid fill level checking.
