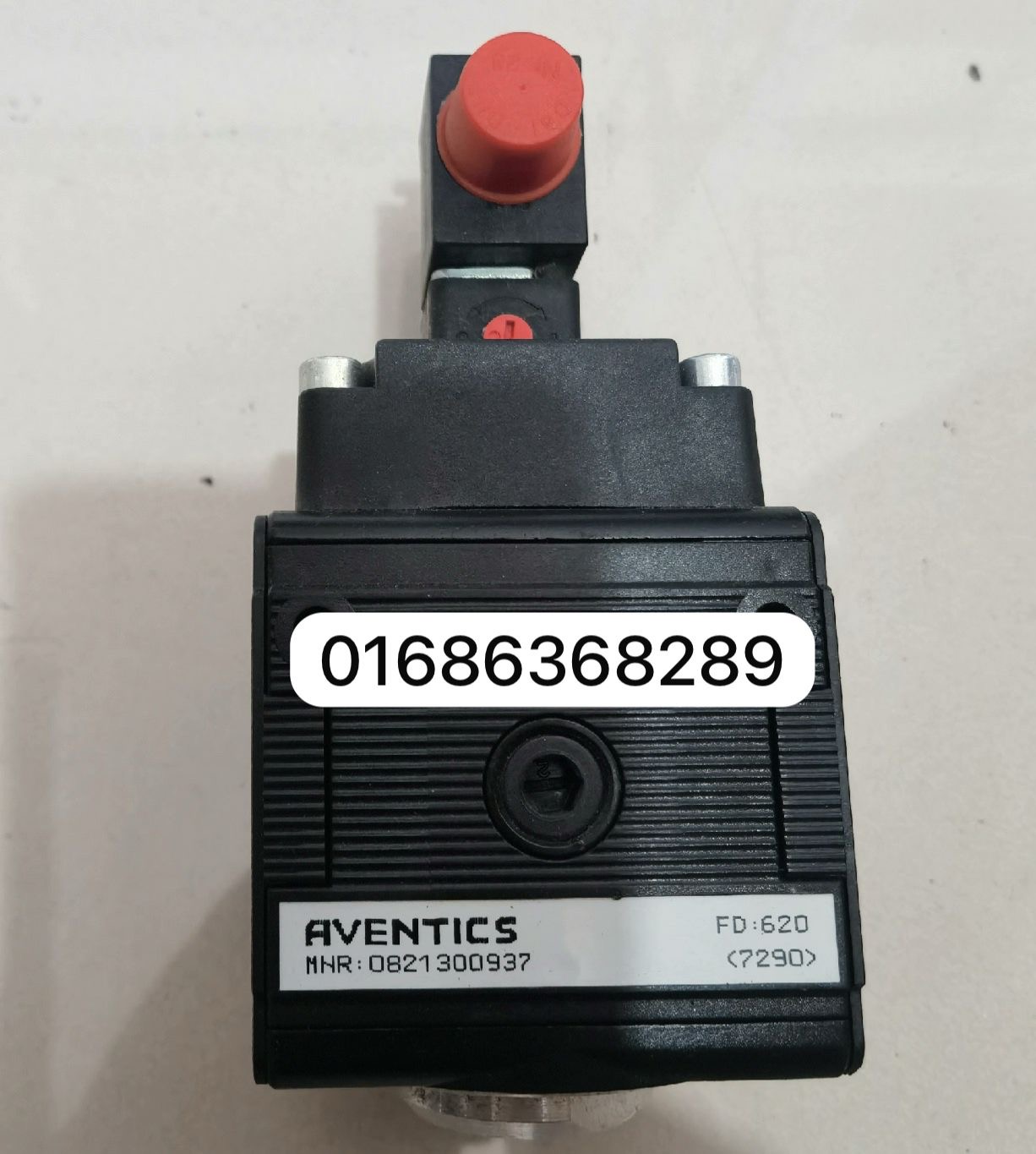

AVENTICS 0821300937 Direction Valve

Description

0821300934
0821300933
0821300932
0820019631
0821300937
08213509342



The Price Is Not Accurate Here so if you want these goods, Direct Text to our WhatsApp +8801686368289

We are not an Authorized dealer or distributor of this brand; we just import it from abroad and sell it bd the local market



Supplier In Bangladesh Importer In Bangladesh Best Price In Bangladesh BD



Key Features

• Valve Type: 3/2-directional poppet valve, electrically operated.

• Actuation: Electrically operated with internal pilot.​

• Manual Override: Equipped with a detent feature for manual operation.​

• Flow Capacity:

  • Nominal Flow (1 → 2): Up to 4000 l/min​

  • Nominal Flow (2 → 3): Up to 1600 l/min​

• Operating Pressure:

  • Minimum: 2.5 bar​

  • Maximum: 10 bar​

• Medium: Compressed air or neutral gases.​

• Temperature Range:

  • Medium and Ambient Temperature: -10°C to +60°C​

• Pilot: Internal.

• Sealing Principle: Soft sealing.

• Protection Class: IP65 when connected

• Housing Material: Die-cast zinc.

• Weight: Approximately 1.05 kg.​

---

⚙️ Typical Applications

• Industrial Automation: Directing airflow to control pneumatic actuators in manufacturing processes.​

• Material Handling: Operating actuators in conveyor systems and robotic arms.​

• Packaging Machinery: Managing pneumatic movements in packaging equipment.​

• Automotive Industry: Operating various pneumatic control systems in automotive manufacturing.​

• General Pneumatic Systems: Providing reliable directional control of compressed air in diverse applications.​
