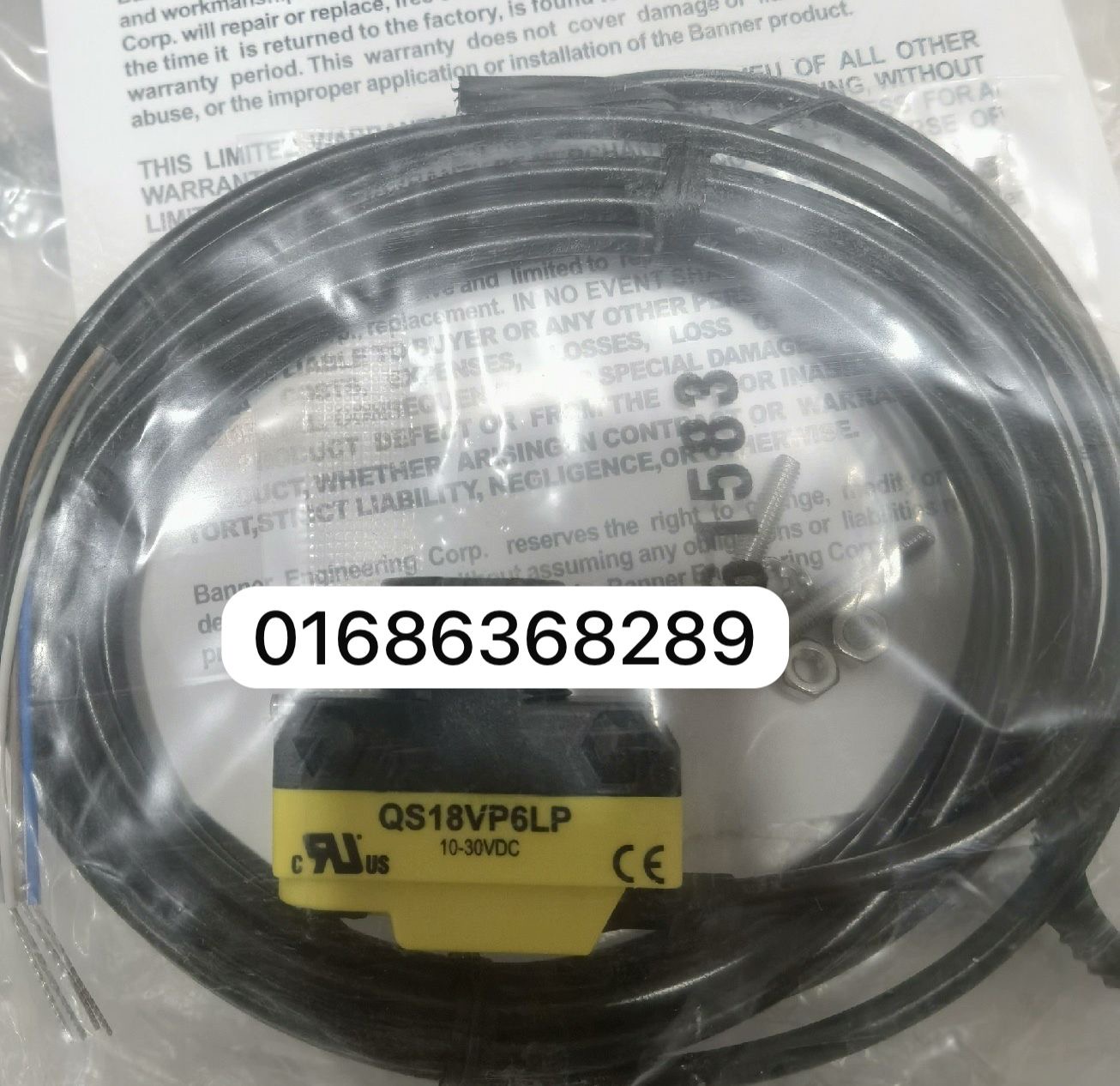

Banner QS18VP6LP Photoelectric Sensor

Key Features

• Sensing Mode: Polarized retroreflective, ensuring accurate detection by filtering out unwanted reflections

• Sensing Range: Up to 3.5 meters, suitable for medium-distance applications.​

• Light Source: Red LED with a wavelength of 630 nm, providing visible alignment.​

• Output Configuration: PNP with selectable Light ON/Dark ON modes, offering flexibility in system integration.​

• Response Time: Typical response time of less than 0.6 milliseconds, enabling high-speed detection.​

• Power Supply: Operates on 10 to 30 VDC, accommodating standard industrial power supplies

• Housing: Durable ABS plastic with an IP67 rating, ensuring protection against dust and water ingress.​

• Indicators: 360° visible LEDs for power, output status, and signal strength, facilitating easy diagnostics.​

• Adjustment: Sensitivity can be fine-tuned via an integrated potentiometer, allowing for precise setup.​

🛠️ Typical Applications

The QS18VP6LP sensor is commonly employed in:​

• Material Handling: Detecting the presence and position of packages on conveyors.​

• Automated Packaging: Ensuring correct placement and orientation of items during packaging processes.​

• Baggage Handling Systems: Monitoring luggage flow in airports and transit systems.​

• Pallet Detection: Identifying pallets in automated storage and retrieval systems.​

• Bottle Conveying: Tracking bottles in beverage production lines for filling and labeling operations.
