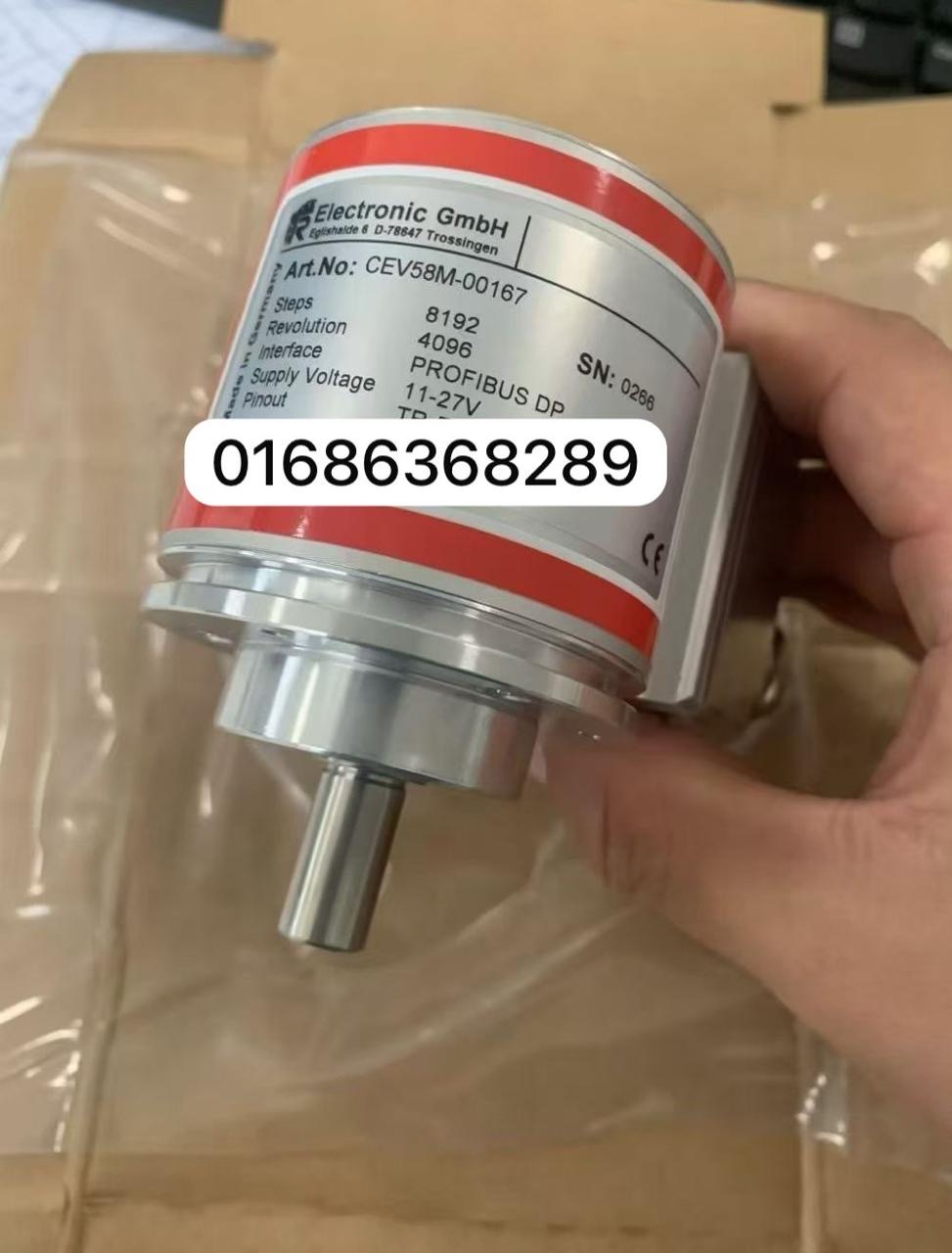

CEV58M-00167 TR Electronics Absolute Rotary Encoder

The CEV58M-00167 from TR Electronic is an absolute rotary encoder with a 58mm housing diameter. While detailed parameter keys or feature descriptions for this specific model may not be publicly available without the official datasheet, here are some common parameters and features typically associated with absolute rotary encoders from TR Electronic:

Key Parameters & Features:

1. Resolution (Position Counts):
   • Absolute encoders provide a unique digital code for each position (e.g., 12-bit = 4096 positions, 13-bit = 8192 positions, etc.).
   • The exact resolution for the CEV58M-00167 should be checked in the datasheet.
2. Output Type:
   • Common interfaces include:
     • Parallel Gray Code (TTL)
     • SSI (Synchronous Serial Interface)
     • BiSS-C (open-source serial interface)
     • Profibus-DP, CANopen, or other fieldbus options (if applicable).
3. Electrical Specifications:
   • Supply Voltage (e.g., 5V DC, 10-30V DC).
   • Output signal levels (e.g., HTL, TTL, RS422).
4. Mechanical Specifications:
   • Shaft type (hollow shaft, solid shaft, or blind hollow shaft).
   • Protection class (e.g., IP65, IP67 for dust/water resistance).
   • Max. rotational speed (e.g., 5000 rpm).
5. Housing & Mounting:
   • 58mm flange mounting (standard).
   • Material (typically aluminum with anodized coating).
6. Special Features (if applicable):
   • Multi-turn capability (for tracking multiple revolutions).
   • Diagnostic functions (e.g., signal monitoring).
   • Programmable parameters (if supported).
