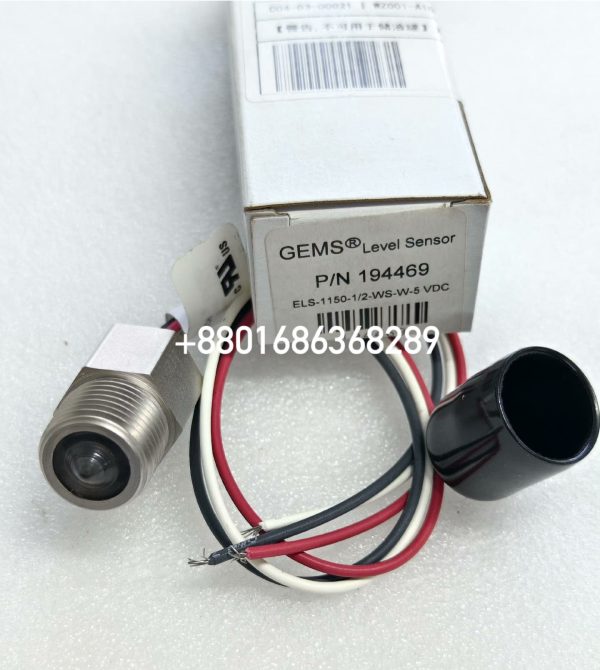

Gems ELS-1150 194469 Level Sensor Controls Float Switch Supplier In Bangladesh, Importer In Bangladesh, Best Price In Bangladesh BD
Key Features
-
Sensor Type: Electro-optic single-point level switch.
-
Compact Design: Measures only 1.38 inches (35 mm) in length, facilitating installation in tight spaces.
-
Construction Materials:
-
Housing: Nickel-plated carbon steel.
-
Prism: Fused glass, eliminating leak potential and ensuring durability under high pressure
-
-
Operating Pressure: Handles pressures up to 2,500 psi (172 bar).
-
Temperature Range: Operates between -40°F to +212°F (-40°C to +100°C)
-
Electrical Specifications:
-
Input Voltage: 5 VDC.
-
Output: Open collector sink, 18 mA max.
-
Switch Operation: Normally open (non-reversible).
-
Switch Type: TTL/CMOS compatible.
-
-
Mounting:
-
Size: 1/2″ NPT male.
-
Orientation: Suitable for vertical or horizontal installation.
-
-
Electrical Termination: 12″ long, 22 AWG polymeric leads.
-
Certifications: CE, UL Recognized
⚙️ Typical Applications
The ELS-1150 is versatile and can be employed in various industries, including:
-
Industrial Equipment: Monitoring fluid levels in machine tools, compressors, and chillers.
-
HVAC and Refrigeration: Ensuring proper fluid levels in heating, ventilation, air conditioning, and refrigeration systems.
-
Hydraulic Systems: Detecting levels in hydraulic and lubricating oil reservoirs.
-
Medical Equipment: Used in devices like anesthesia machines and histology equipment for fluid level detection.
-
Chemical Processing: Suitable for applications involving corrosive liquids such as acids, solvents, and dielectric fluids
-
Oil & Gas Industry: Monitoring constant media levels like hydraulic fluid or coolant in various processes.
