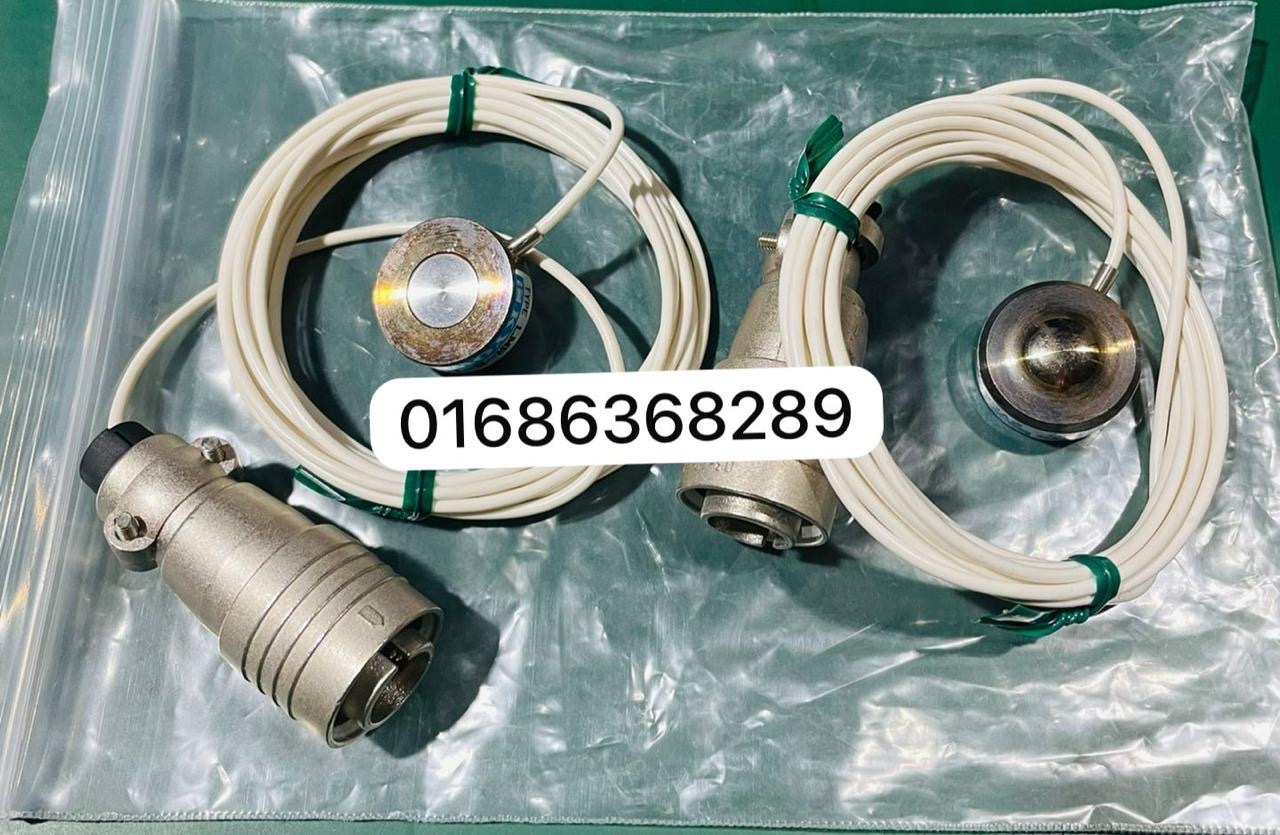

Kyowa LMR-S-10KNSA2 Miniature Compression Load Cell

Description

The Price Is Not Accurate Here So if You want this goods Direct Text to Our Whats App +8801686368289

We Are an Not Authorized dealer or distributor of this brand we just import it from abroad and sell it bd the local market



Kyowa LMR-S-10KNSA2 Miniature Compression Load Cell Supplier In Bangladesh Importer In Bangladesh Best Price In Bangladesh BD





Kyowa LMR-S-10KNSA2 Miniature Compression Load Cell – Datasheet Summary

1. General Specifications

• Model: LMR-S-10KNSA2
• Type: Subminiature compression load cell
• Application: High-precision force measurement in tight spaces (e.g., robotics, biomedical devices, industrial automation).

2. Key Parameters

• Capacity: 10 kgf (98 N)
• Rated Output: 1.0 mV/V ±10%
• Nonlinearity: < ±0.5% FS (Full Scale)
• Hysteresis: < ±0.5% FS
• Creep (20 min): < ±0.5% FS
• Temperature Effect on Zero: < ±0.5% FS/10°C
• Excitation Voltage: 1–12V DC (recommended: 2V DC)
• Safe Overload: 150% of capacity

3. Mechanical & Environmental

• Material: Stainless steel (AISI 630)
• Dimensions:
  • Diameter: ~12 mm
  • Height: ~12 mm (varies by model)
• Weight: ~10 g
• Protection: IP40 (standard; optional IP67 with sealing)
• Operating Temperature: -10°C to +60°C

4. Electrical Connections

• Wiring: 4-wire (Red: +Ex, Black: -Ex, Green: +Sig, White: -Sig)
• Cable Length: Standard 1m (shielded)

5. Features

• Ultra-compact design for space-critical applications
• High rigidity and low deflection
• Excellent long-term stability

---
