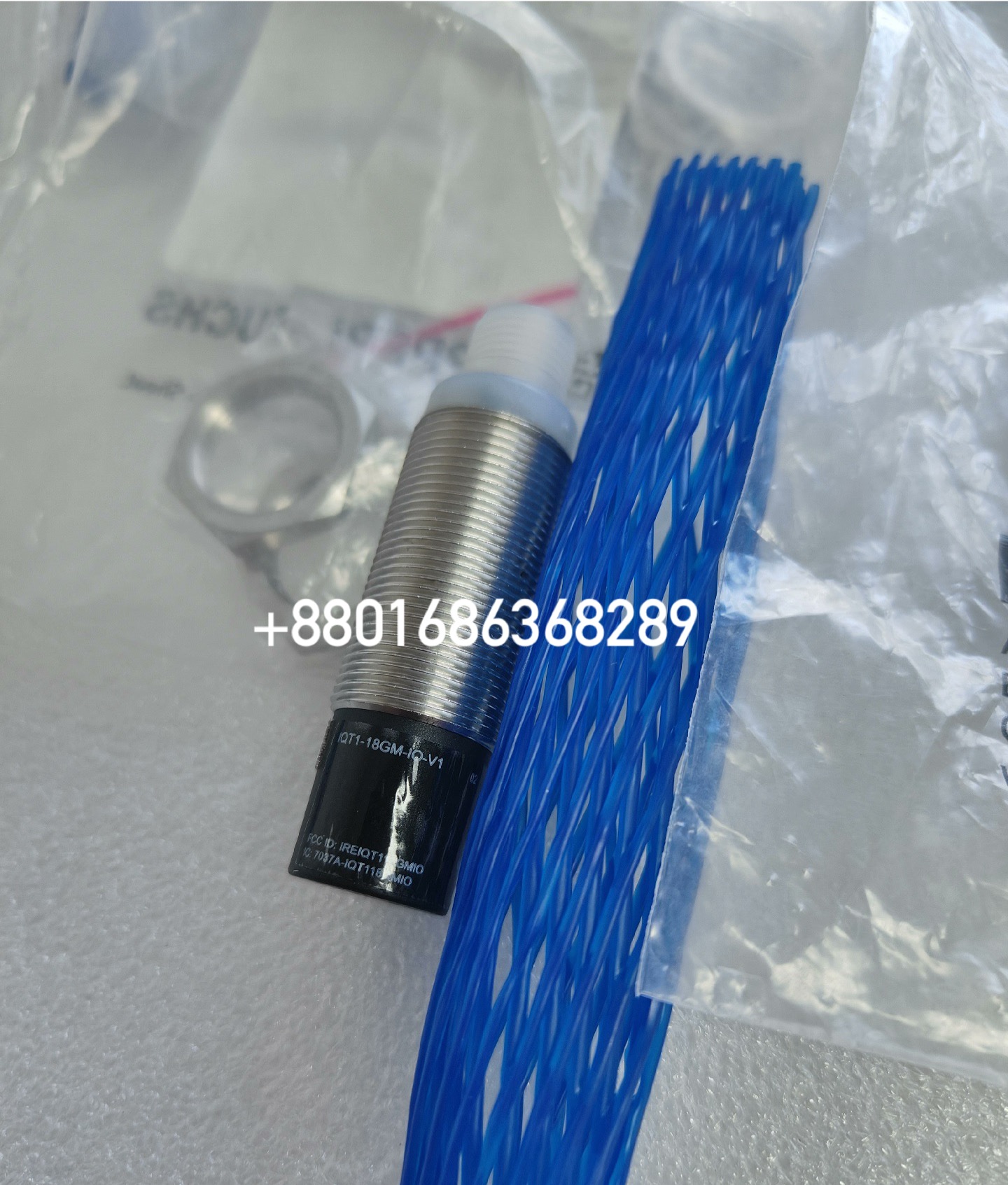

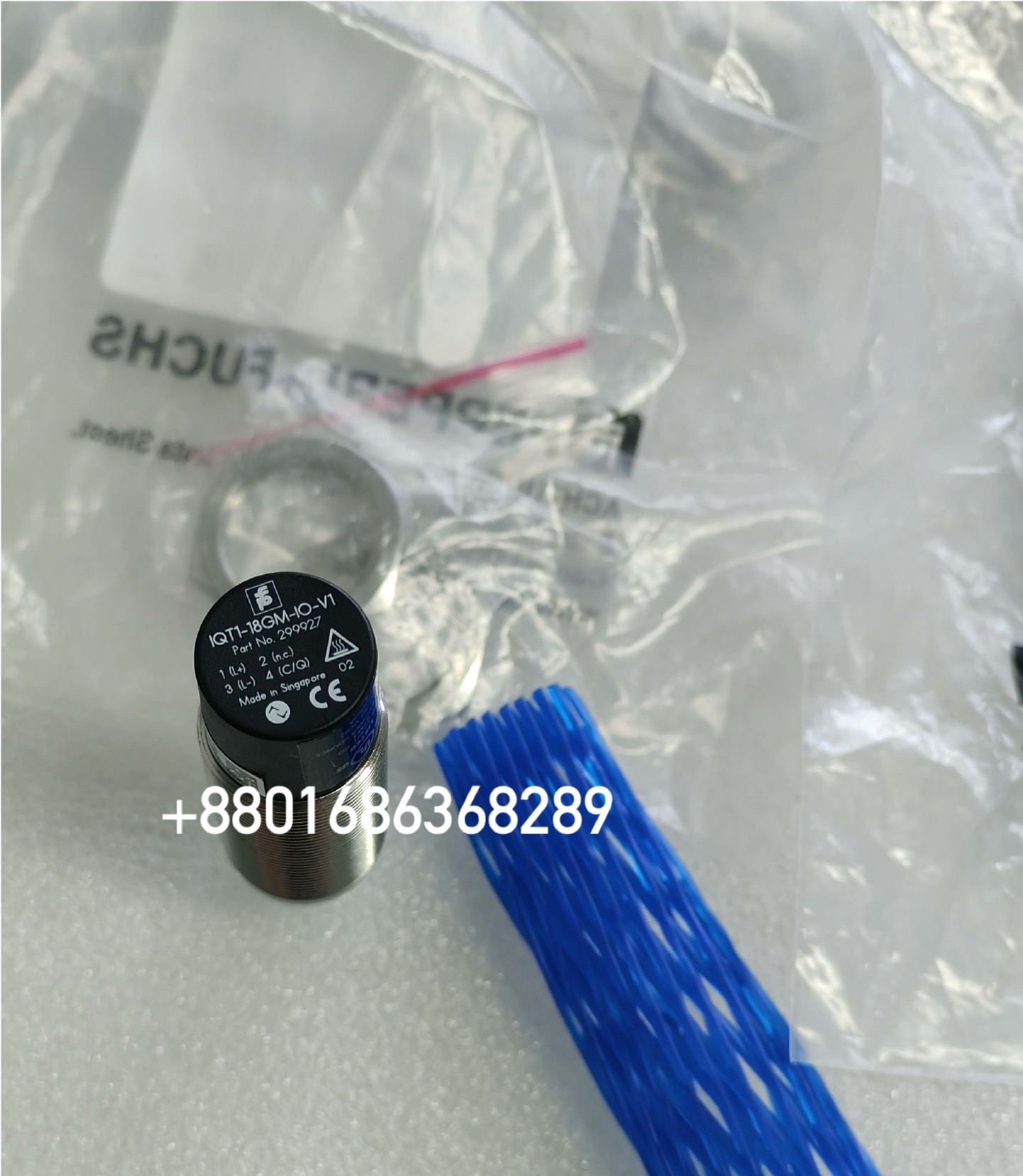

Pepperl+Fuchs P+F IQT1-18GM-IO-V1 RFID Read/Write Device

Description

The Price Is Not Accurate Here so if you want these goods, Direct Text to our WhatsApp +8801686368289

We are not an Authorized dealer or distributor of this brand; we just import it from abroad and sell it bd the local market

Pepperl+Fuchs P+F IQT1-18GM-IO-V1 RFID Read/Write Device  Supplier In Bangladesh, Importer In Bangladesh, Best Price In Bangladesh BD

Key Features

• Operating Frequency: 13.56 MHz (HF RFID)

• Communication Protocol: IO-Link interface, compliant with IO-Link version 1.1

• Standards Compliance: Conforms to ISO 15693

• Transponder Compatibility: Suitable for FRAM transponders

• Read/Write Range: 0 to 50 mm

• Transfer Rate: 26 kBit/s

• Indicators:

  • Green LED: Power on

  • Flashing Green: IO-Link communication active

  • Flashing Red/Green: IO-Link communication interrupted

  • Blue LED: Write/read attempt performed

  • Yellow LED: Read/write tag detected

• Mechanical Design:

  • Threaded housing: M18 x 1

  • Connection: V1 (M12 x 1) plug

  • Width: Max. 45 mm

• Electrical Specifications:

  • Operating Voltage: 20 to 30 V DC

  • No-load Supply Current: ≤ 70 mA at 24 V DC

  • Power Consumption: ≤ 2 W

• Environmental Protection: IP67-rated for dust and water resistance

• Mean Time Between Failures (MTBF): 140 years at 40°C​

⚙️ Typical Applications

• Industrial Automation: Tracking and identification of parts and products on assembly lines.

• Logistics and Material Handling: Inventory management and pallet tracking.

• Access Control: Secure entry systems in industrial facilities.

• Process Control: Monitoring and controlling manufacturing processes through RFID-tagged components.
