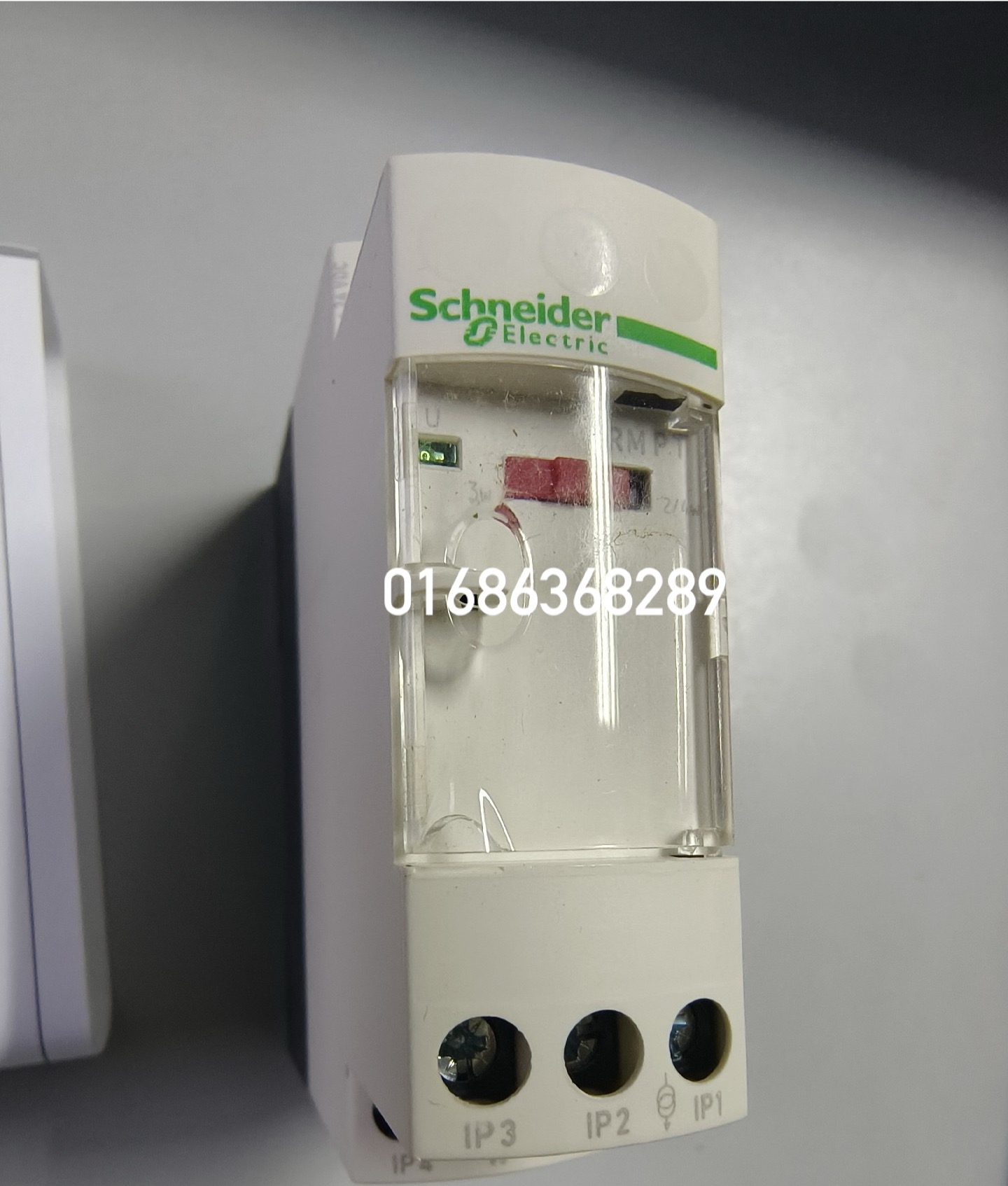

RMPT53BD Analog Temperature Transmitter

We are not an Authorized dealer or distributor of this brand; we just import it from abroad and sell it bd the local market

RMPT53BD Analog Temperature Transmitter  Supplier In Bangladesh, Importer In Bangladesh, Best Price In Bangladesh BD





Key Features:

• Measurement Range: 0 to 250 °C (32 to 482 °F)

• Sensor Compatibility: Supports Pt100 resistance temperature detectors (RTDs) in 2-, 3-, or 4-wire configurations

• Analog Output Options:

  • Current: 4–20 mA (load ≤ 500 Ω)

  • Voltage: 0–10 V (load ≥ 100 kΩ)

• Power Supply: 24 V DC ±20% (non-isolated)

• Current Consumption:

  • ≤ 40 mA for voltage output

  • ≤ 60 mA for current output

• Accuracy:

  • ±0.5% of full scale at 20 °C for 3- or 4-wire configurations

  • ±1% of full scale at 20 °C for 2-wire configurations

• Repeatability: ±0.2% of full scale at 20 °C

• Temperature Coefficient: 150 ppm/°C

• Protection Features:

  • Short-circuit protection on output

  • Reverse polarity protection on power supply and output

  • Overvoltage protection on output (±30 V)

• Abnormal Output Indicators:

  • Voltage output: -15 to -11 V or 11 to 15 V when input is missing or wire is broken

  • Current output: -30 to 0 mA or 22 to 30 mA under the same conditions

• Mounting Options:

  • 35 mm DIN rail (clip-on)

  • Panel mounting

• Connection Capacity:

  • 1 x 2.5 mm² or 2 x 1.5 mm²

  • Tightening torque: 0.6 to 1.1 N·m

• Status Indicator: Green LED for power ON

• Isolation Voltage: 2000 V

• Surge Withstand: 0.5 kV (1.2/50 µs)

• Electromagnetic Compatibility:

  • Electrostatic discharge: 6 kV (contact), 8 kV (air)

  • Fast transients: 1 kV (input-output), 2 kV (power supply)

  • Radiated/conducted disturbances: CISPR 22 group 1 - class B

• Environmental Ratings:

  • Operating temperature: 0 to 60 °C

  • Storage temperature: -40 to 85 °C

  • Humidity: Up to 95% non-condensing

  • Pollution degree: 2

• Mechanical Resistance:

  • Shock: 50 g for 11 ms

  • Vibration: 5 g (10–100 Hz)

• Ingress Protection:

  • IP20 (terminal block)

  • IP50 (housing)

• Dimensions:

  • Width: 8.2 cm

  • Height: 2.7 cm

  • Depth: 8.5 cm

• Weight: Approximately 0.12 kg

---

Applications:

• Industrial Automation: Accurate temperature monitoring in manufacturing processes.

• HVAC Systems: Temperature control in heating, ventilation, and air conditioning systems.

• Process Control: Monitoring and controlling temperatures in chemical, pharmaceutical, and food processing industries.

• Energy Management: Temperature measurement in power generation and distribution systems.

• Building Management Systems: Integration into systems for maintaining optimal environmental conditions.
