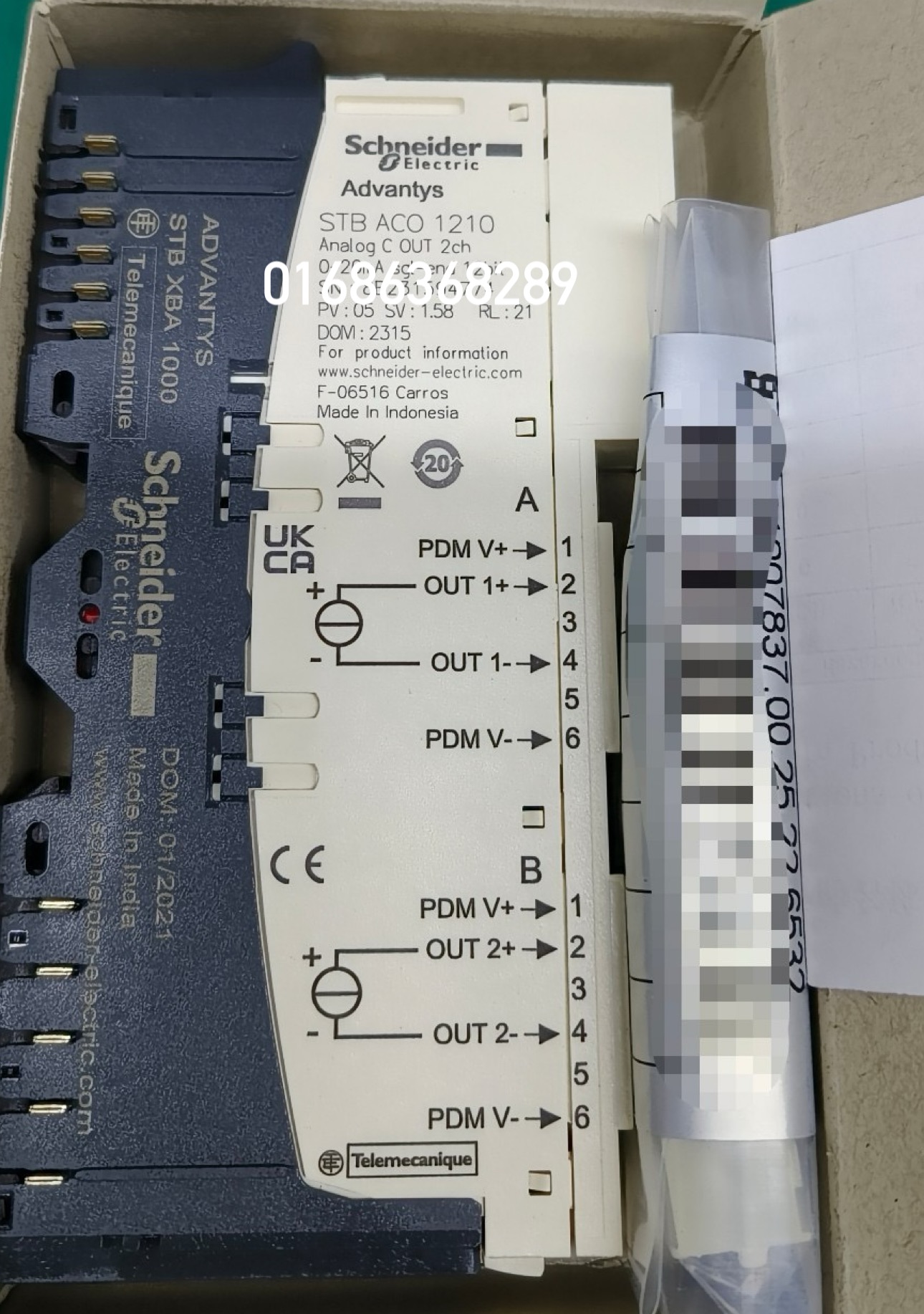

Schneider STBACO1210K Standard Analog Output Kit Modicon

Description

The Price Is Not Accurate Here so if you want these goods, Direct Text to our WhatsApp +8801686368289

We are not an Authorized dealer or distributor of this brand; we just import it from abroad and sell it bd the local market

Schneider STBACO1210K Standard Analog Output Kit Modicon Supplier In Bangladesh, Importer In Bangladesh, Best Price In Bangladesh BD



Kit Composition:

• STBACO1210 Module: The core analog output module.

• STBXBA1000 Base: Mounting base for the module.

• STBXTS1100: 6-terminal screw-type connector.

• STBXTS2100: 6-terminal spring clamp connector





Key Features:

• Analog Output Type: Current output ranging from 0 to 20 mA.

• Number of Outputs: 2 independent analog output channels.

• Resolution: 12-bit digital-to-analog conversion.

• Response Time: 3 milliseconds for rapid signal processing.

• Update Time: 25 milliseconds for consistent data refresh.

• Conversion Time: 900 milliseconds with ±0.1% of final value accuracy.

• Accuracy: ±0.5% of full scale per °C; temperature drift of ±0.01% per °C.

• Isolation: 1500 V isolation between channels and logic bus for 1 minute; 30 V between channels and actuator bus.

• Protection: Short-circuit protection to safeguard the module and connected devices.

• Hot Swapping: Supported with standard Network Interface Modules (NIMs).

• Cold Swapping: Supported for maintenance flexibility.

• Fallback State: Configurable fallback state for standard NIMs; default is 0 for basic NIMs.

• Data Format Compliance: EN 61131-2 and IEC 61131-2 standards.

• Power Supply: 24 V DC supplied via power distribution module.

• Current Consumption: 40 mA at 5 V DC for logic bus.

• Status Indicators: Green LED for module status (RDY); Red LED for module error (ERR).

• Dimensions: Width: 128.3 mm; Height: 13.9 mm; Depth: 70 mm.

• Weight: Approximately 0.117 kg.

• Environmental Ratings:

  • Operating Temperature: 0 to 60 °C.

  • Storage Temperature: -40 to 85 °C.

  • Relative Humidity: Up to 95% at 60 °C without condensation.

  • Vibration Resistance: 3 gn at 58–150 Hz on 35 x 7.5 mm DIN rail; 5 gn on 35 x 15 mm DIN rail.

  • Shock Resistance: 30 gn for 11 ms as per IEC 88 reference 2-27.

  • Protection Degree: IP20 as per IEC 61131-2 class 1.
