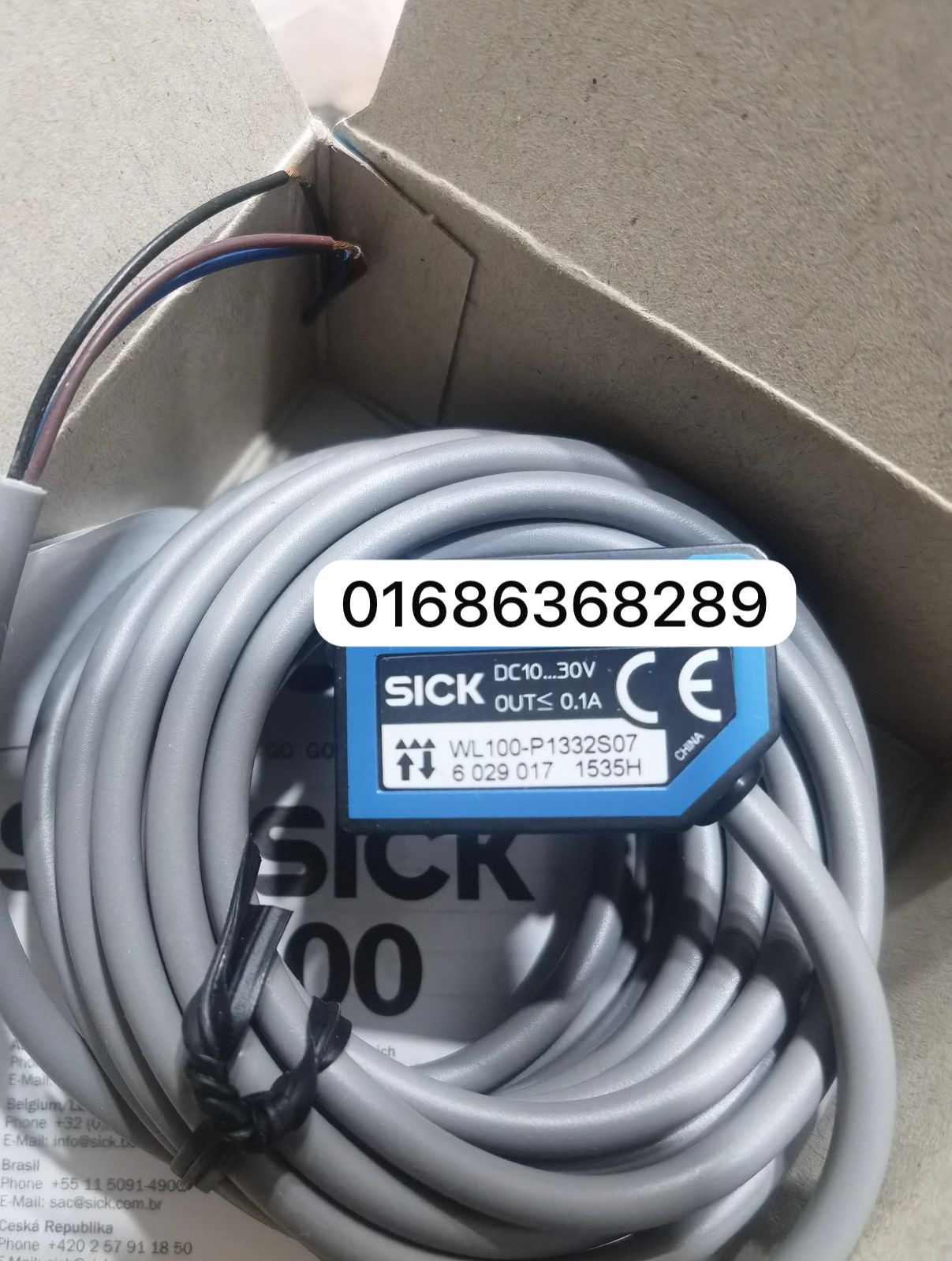

Sick WL100-P1332S07 Photoelectric Sensors 6029017

Description

The Price Is Not Accurate Here so if you want these goods, Direct Text to our WhatsApp +8801686368289

We are not an Authorized dealer or distributor of this brand; we just import it from abroad and sell it bd the local market

Sick WL100-P1332S07 Photoelectric Sensors 6029017 Supplier In Bangladesh, Importer In Bangladesh, Best Price In Bangladesh BD











Key Features

• Sensing Range: 0.01 m to 6 m (typical range: 0.01 m to 5 m) using reflector PL80A​

• Light Source: Visible red LED (680 nm wavelength

• Output Type: PNP, light switching mode​

• Response Time: ≤ 0.5 ms​

• Switching Frequency: Up to 1,000 Hz​

• Power Supply: 10–30 V DC with 30 mA current consumption​

• Connection: 3-wire, 3 m PVC cable

• Housing Dimensions: 11 mm (W) × 31 mm (H) × 20 mm (D)​

• Enclosure Rating: IP65, suitable for industrial environments​

• Operating Temperature: –25°C to +55°C​

• Polarization Filter: Included, enabling reliable detection of shiny objects​

• Circuit Protection: Reverse polarity, overcurrent, and short-circuit protection​

• MTTFD: 1,434 years, indicating high reliability

---

⚙️ Typical Applications

• Packaging and Logistics: Object detection on conveyors and sorting systems​

• Material Handling: Presence detection in automated storage and retrieval systems

• Compact Machinery: Ideal for space-constrained applications requiring precise sensing

• Assembly Lines: Monitoring parts and components during manufacturing processes
